AI-Assisted Editing

WorkflowEditor can be driven by an AI agent while the user keeps editing the same workflow. This page describes the building blocks a host application uses to do that.

Overview

Flow is AI-agnostic. The agent, the chat UI and any agent status display live in the host (for example Apitomy Axiom). Flow exposes an edit API whose primitive is the change set: a list of operations computed against a known content revision. The host can either stage a change set for the user to review (propose) or apply it immediately as one undoable step (apply).

const editorRef = useRef<WorkflowEditorHandle>(null);
// ...
<WorkflowEditor ref={editorRef} workflow={seed} onChange={(workflow, meta) => sendToAgent(workflow, meta)} />;
// later, when the agent answers:
const result = editorRef.current!.propose(changeSetFromAgent);

Content revisions

A content revision identifies the content of a workflow, ignoring layout:

"sha256:" + hex(SHA-256(JCS(stripLayout(workflow))))

JCS is RFC 8785 JSON canonicalization, so key order and number formatting do not matter.
stripLayout removes position from every node. Every other field, including the workflow id, name, description, version and config extension keys, is part of the content.
Layout-only edits (moving nodes) do not change the revision, and undoing back to identical content restores the identical value.

Hosts computing the revision server-side must hash exactly the Flow Workflow document they send to the editor, with no host-specific fields added. Otherwise every change set will be rejected as stale.

import { computeContentRevision } from '@apitomy/flow-ui';

const revision = computeContentRevision(workflow); // "sha256:3f1c..."

In Java, use io.apitomy.flow.changeset.ContentRevision.of(workflow), which accepts either a Workflow model or a Jackson JsonNode. Both implementations are verified by conformance/content-revision.json.

Change sets

interface ChangeSet {
    id: string;
    baseRevision: string;            // the contentRevision the agent based this on
    author: `agent:${string}` | 'host';
    summary: string;
    ops: ChangeOp[];
}

Op	Fields	Effect
`addNode`	`node`	Adds a node. A node without `position` is placed near its connected neighbours.
`updateNode`	`id`, `patch: { name?, config? }`, `unset?`	Updates the name and shallow-merges config.
`renameNode`	`id`, `newId`	Renames a node and rewrites `source`/`target` of attached edges.
`removeNode`	`id`	Removes a node and every edge attached to it.
`addEdge`	`edge`	Adds an edge; both endpoints must exist.
`updateEdge`	`id`, `patch`, `unset?`	Shallow-merges edge fields (any field except `id`).
`removeEdge`	`id`	Removes an edge.
`metadata`	`patch: { name?, description?, version? }`	Updates workflow metadata.

Ops apply in order and later ops see the effects of earlier ones. Application is atomic: any error leaves the workflow unchanged.

Patch semantics

updateNode.patch.config is merged shallowly into the existing config. Nested values such as the inputs and outputs mappings are replaced whole.
unset lists top-level config keys (for updateNode) or edge fields (for updateEdge) to remove, for example timeout or condition. It is applied after patch; a key in both is malformed.
null in a patch is stored as a value. It does not remove the key; use unset for that.

Removing one entry from a nested mapping means resending the whole mapping. To drop input foo from an action node whose inputs are foo and bar:

const dropFoo: ChangeSet = {
    id: 'cs-42', author: 'agent:assistant', summary: 'Stop passing foo to the action',
    baseRevision: editorRef.current!.getSnapshot().contentRevision,
    ops: [{ op: 'updateNode', id: 'notify', patch: { config: { inputs: { bar: 'context.bar' } } } }],
};
// unset: ['inputs'] would remove *all* inputs instead.

Errors

Failures are returned, never thrown, as { code, opIndex?, reason }. reason is human-readable; code is stable and suitable for mapping to agent prompt hints.

Code	Meaning
`target-missing`	The op references a node or edge that does not exist.
`duplicate-id`	An added or renamed element's id already exists.
`edge-endpoint-missing`	An edge's `source` or `target` does not exist.
`malformed`	The op is structurally invalid, for example a key in both `patch` and `unset`.
`read-only`	The editor is read-only (editor handle only).
`stale`	`baseRevision` does not match the current content revision. Has no `opIndex`.

The pure functions are exported for use outside the editor:

import { applyChangeSet, applyChangeSetChecked } from '@apitomy/flow-ui';

const result = applyChangeSetChecked(workflow, changeSet); // also checks baseRevision
if (!result.ok) console.warn(result.error.code, result.error.opIndex, result.error.reason);

In Java, io.apitomy.flow.changeset.ChangeSets.apply(workflow, changeSet) and ChangeSets.applyChecked(workflow, changeSet) take Jackson JsonNodes and return a sealed ChangeSetResult (Applied(workflow) or Rejected(error)) with the same semantics and error codes. Both implementations are verified by conformance/changesets.json. Java does not place positionless nodes.

The editor handle

Pass a ref to WorkflowEditor to obtain a WorkflowEditorHandle. None of its methods throw. Inputs must be structured-cloneable plain JSON data; a change set that cannot be cloned is rejected as malformed.

Method	Result
`propose(cs)`	`{ status: 'staged' }` or `{ status: 'rejected', error }`. On a read-only editor it returns `'staged'` but shows no review bar.
`apply(cs)`	`{ status: 'applied' }` or `{ status: 'rejected', error }`
`withdraw(id)`	Removes the staged proposal if its id matches.
`replace(workflow, origin?)`	Replaces the whole document as one undo step. `origin` defaults to `'host'`.
`clearHighlights()`	Removes the applied-change highlight.
`getSnapshot()`	`{ workflow, contentRevision, selection, problems }` (a detached copy).

apply produces exactly one undo step tagged with origin = cs.author. The workflow prop remains seed-only; use replace to push a new document from the host.

const handle = editorRef.current!;
const { contentRevision } = handle.getSnapshot();
const result = handle.apply({ ...changeSet, baseRevision: contentRevision });
if (result.status === 'rejected' && result.error.code === 'stale') askAgentToRetry();

Review UX

One proposal at a time. A new propose replaces the staged proposal; the old one resolves as 'withdrawn'.
Preview. The canvas shows the proposal on top of the current document: added elements as dashed ghosts, modified and removed elements marked. The canvas stays editable, but proposal elements cannot be edited. Clicking a changed element shows a read-only before/after view in the review bar.
Review bar. A floating "Proposed changes" panel at the bottom of the canvas shows the summary, author, change counts and a validation delta ("introduces N / fixes M", using built-in validation plus spi.validate). Accept runs the same path as apply; Reject discards the proposal.
Staleness. Any content edit makes the staged proposal stale, including undo and redo. Layout-only edits do not. A stale proposal shows "Out of date" and can only be Dismissed.
Applied highlight. Elements added or modified by the most recently applied change set (via apply or Accept) stay highlighted until the next user content edit, clearHighlights(), or the next applied change set. Disable it with highlightApplied={false}.

<WorkflowEditor ref={editorRef} workflow={seed} highlightApplied={false} />

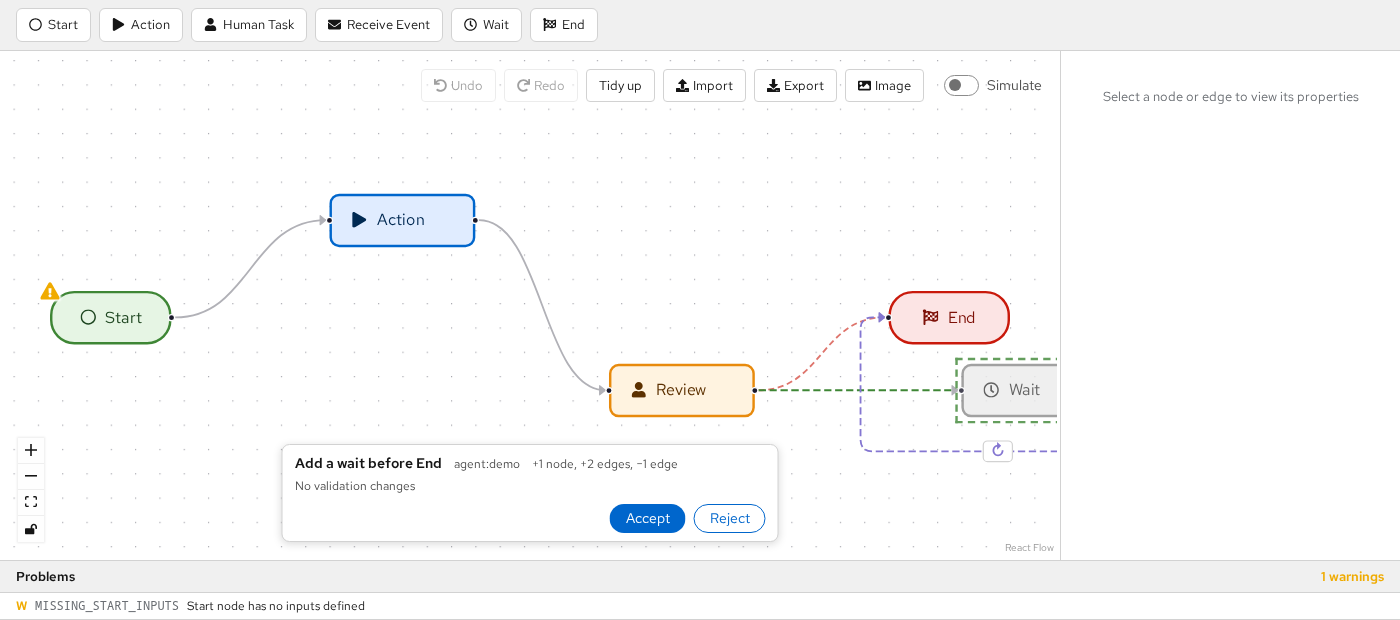

A staged proposal that adds a Wait node before End: the new node and edges are dashed ghosts, and the removed edge is drawn dashed in red.

Staged proposal with the review bar

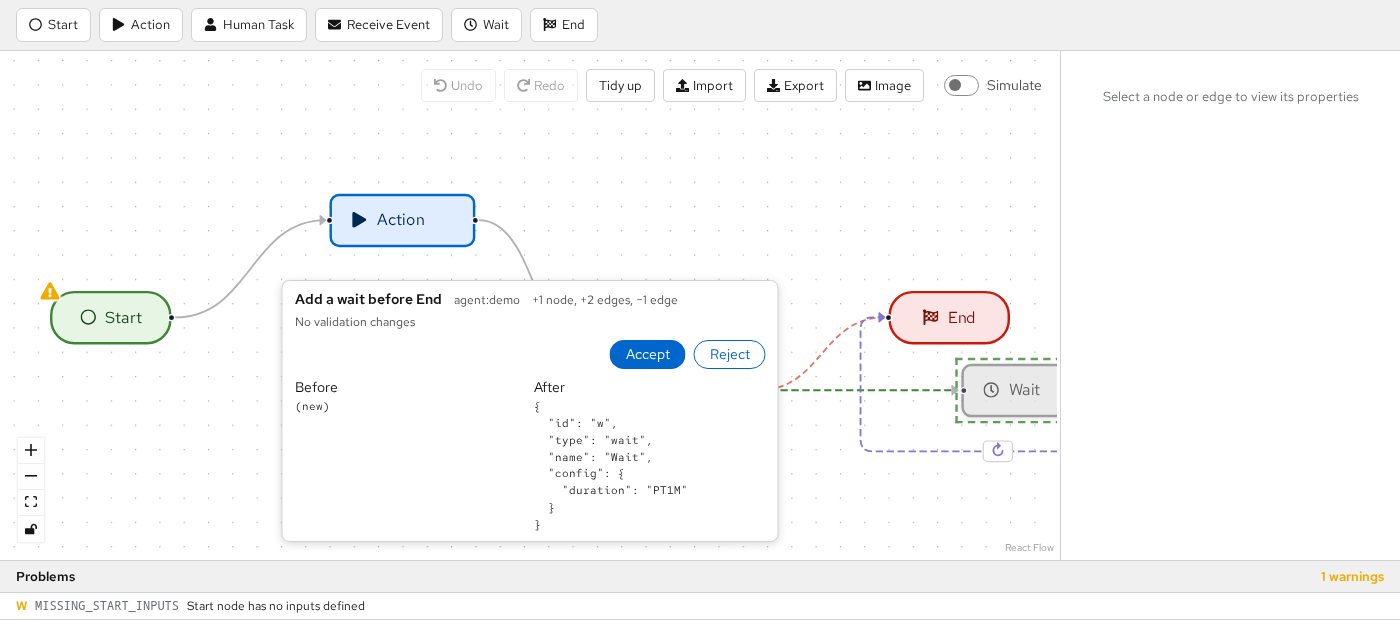

Clicking a changed element shows its before/after in the review bar:

Proposal details in the review bar

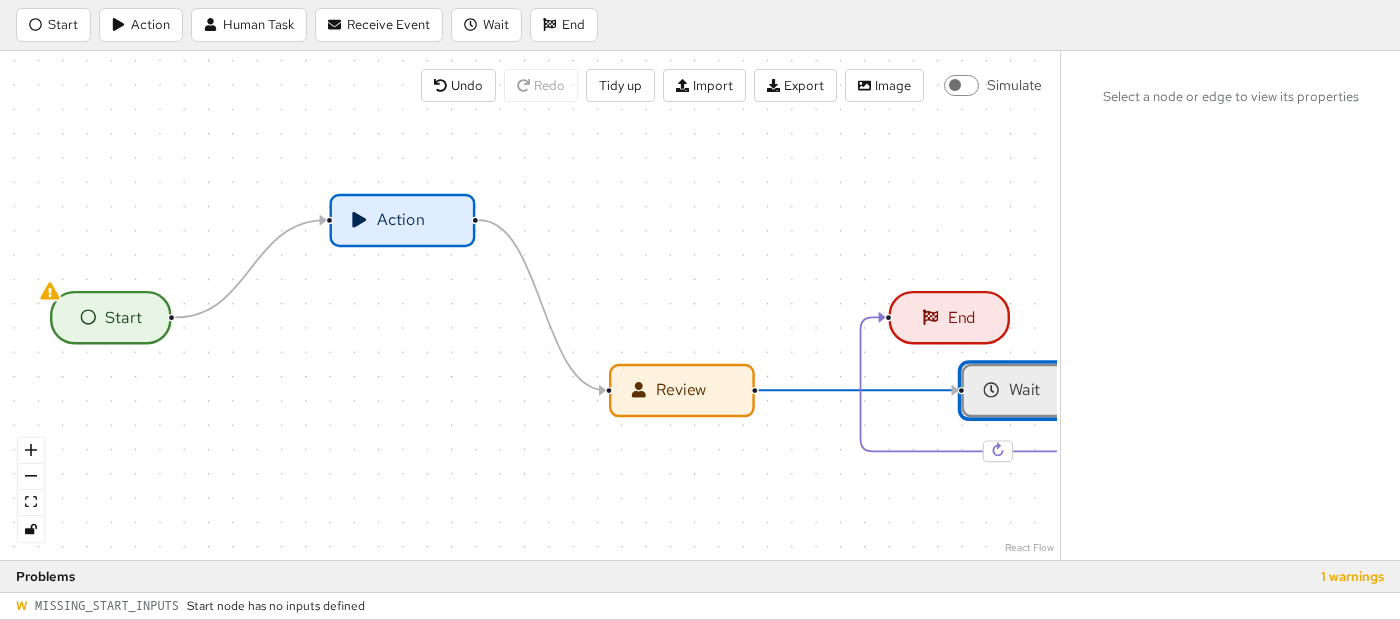

After Accept, the change is one undo step and the changed elements stay highlighted:

Applied change highlighted

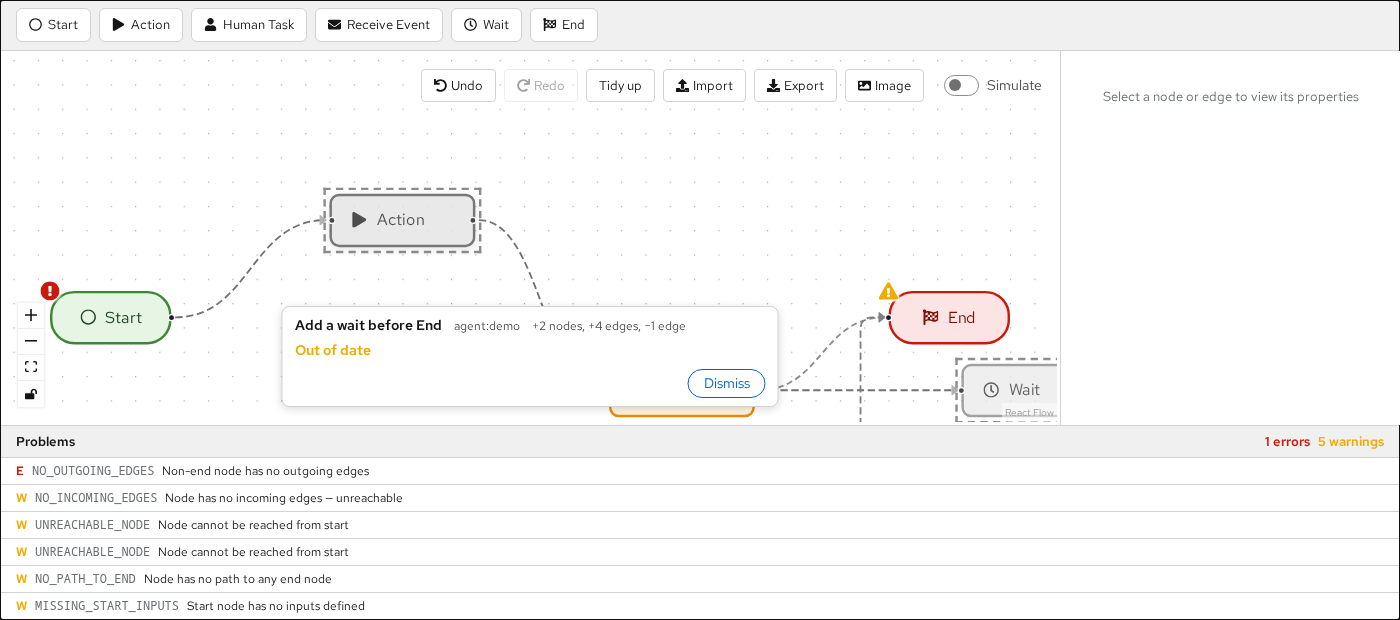

A user content edit makes the proposal stale. Only Dismiss remains, and the overlay is greyed out:

Stale proposal

Events

onChange(workflow, { contentRevision, origin }) — origin is 'user', 'host' or agent:<name>. Accepting a proposal fires onChange once, with the agent origin.
onProposalResolved(id, outcome) — outcome is 'accepted', 'rejected', 'stale' or 'withdrawn'. 'stale' fires at the moment of invalidation.
onSelectionChange({ nodeIds, edgeIds }) — fires only when the selection actually changes; useful for opening related host tabs or giving the agent "user is looking at X" context.

<WorkflowEditor ref={editorRef} workflow={seed}
    onChange={(workflow, { contentRevision, origin }) => save(workflow, contentRevision, origin)}
    onProposalResolved={(id, outcome) => agent.notify(id, outcome)}
    onSelectionChange={({ nodeIds, edgeIds }) => agent.setFocus(nodeIds, edgeIds)} />

Read-only behaviour

In a read-only editor, propose renders the preview without the review bar, which is useful for displaying a diff. apply is refused with the code read-only.

const result = readOnlyRef.current!.apply(changeSet);
// { status: 'rejected', error: { code: 'read-only', reason: '...' } }

Limitations

Placement of added nodes. Added nodes without a position are placed next to their neighbours without moving existing nodes. This can produce edges that look like loop-backs; use Tidy up to re-layout.
Stale overlays. A stale proposal's overlay is diffed against the current document, so while it is shown greyed out the user's own later edits also appear as changes.
Snapshot problems. The problems in getSnapshot() may lag by one render after a handle dispatch (propose, apply, replace).
